M-tre - StarGo2 Pro

PRODUCT CODE: AV-1MTR001
Print

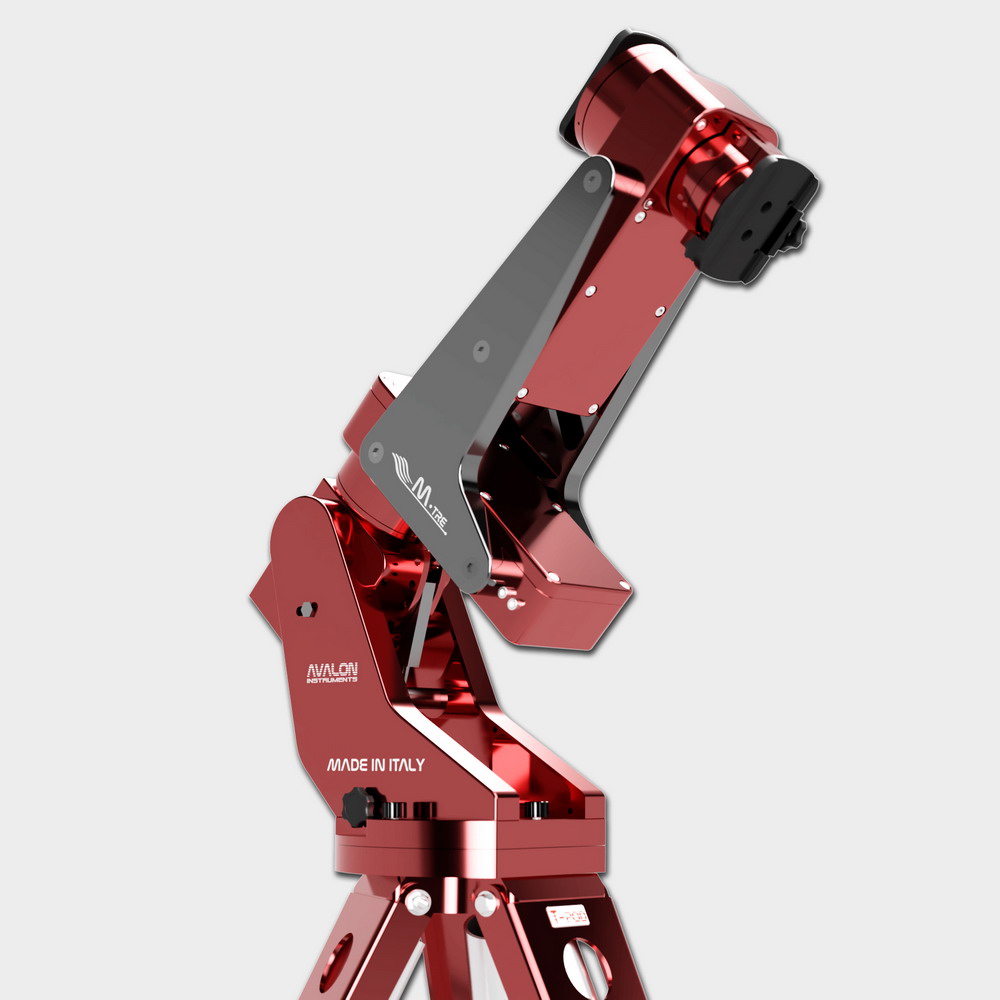

The M-tre is a single arm fork mount for the deepsky imaging, with an high payload capability up to 38 kg in single telescope configuration and up to 50 kg in double telescope configuration.
M-tre Equatorial Mount
Price (VAT excl.)11.500,00 €
Italian VAT (22%) incl.14.030,00 €
Discount applied on the cart:
24-30 weeks-from-the-order.png
Packing Contents Tooltip
  • Mount Head
M-tre in Dual Dec configuration
Description

AVALON EXCLUSIVE BELT DRIVE SYSTEM

M tre catalogue 02 500

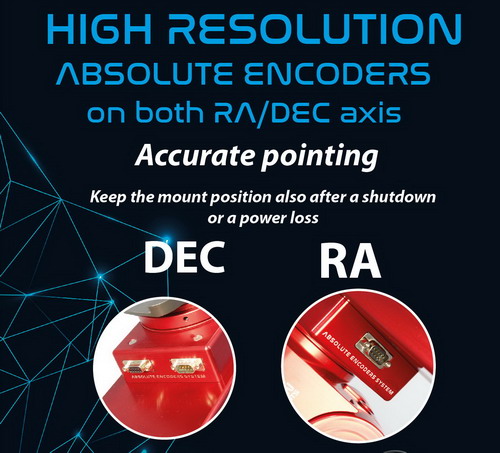

HIGH RESOLUTION ABSOLUTE ENCODER ON BOTH RA/DEC AXIS

With the High Resolution ABSOLUTE ENCODER on both RA/DEC axis, is possible to have accurate pointing and keep the mount orientation also after a shutdown.

M tre catalogue 04 500 B

DUAL DEC

Thanks to the Dual Dec option, it is possible to use the second telescope as a counterweight itself, allowing a significative reduction of the counterweights use.

The possibilities to move the DEC arm towards the RA axis (with the same mechanism and concept of the M-zero, M-uno and M-due mounts), facilitate the balancing procedure allowing to use as less as counterweight possible or even without any counterweight at all.

M tre catalogue 03 500

Slew Speed:  up to 10° / sec

NO MERIDIAN FLIP

M tre catalogue 05 500

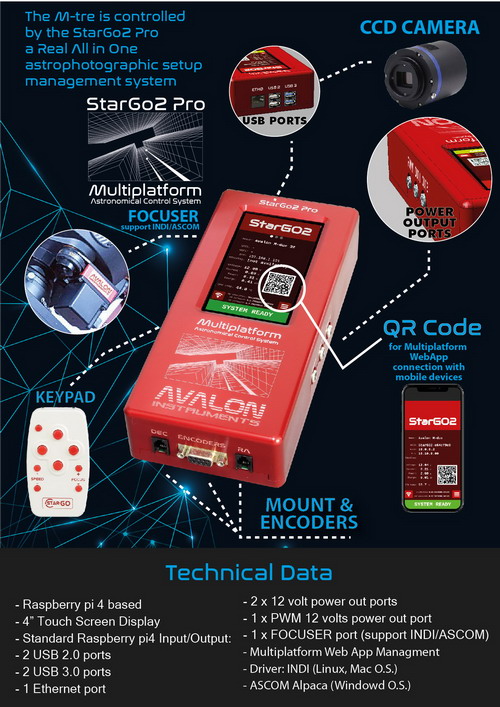

StarGo2 Pro

The mount is controlled by the StarGo2 Pro, a real All in one astrophotografic setup management system for Mount, CCD cameras, Focuser and comes with the following features:

Raspberry pi 4 based

Compatible with all the Linux astronomical software (Kstar, Stellarium, Carte du Ciel etc.)

4” Touch Screen Display on StarGo2 Pro case embedded

Connection mode:

- HARDWARE CONNECTION

- Mode 1: StarGo2 Pro as Hotspot

- Mode 2: StarGo2 Pro connected to your network, via LAN or Wi-Fi

- SOFTWARE CONNECTION

- Desktop remote connection to the StarGo2 Pro Operative System - Raspberry Pi4 - for a full setup control - mount, CCD cameras, focuser etc.

- Multiplatform Web App, for the system network connection and the mount function management

Standard Raspberry pi4 Input/Output:

- 1 audio port, 2 USB 2.0 ports.

- 2 USB 3.0 ports, 1 Ethernet port

- 2 x 12 volt power out ports

- 1 x variable 6 – 12 volts power out port

- 1 x Keypad

- Aux 1 RJ port with ASCOM and INDI driver ready to be used

SkySafari direct connection

Driver:

- INDI (Linux, Mac O.S.)

- ASCOM Alpaca (Windowd O.S.)

Finally a real All in one astrophotografic setup management system for:

Mount - CCD cameras - Focuser

M tre catalogue 06 500

The M-tre comes with a fully rotating declination axis, which allows the use of a second clamp to hold a second OTA

StarGo2 Pro LCD Touchscreen Web App Screenshot. Click on the image below to watch more StarGo2 Pro menu screenshots.

stargo2 pro screen 01

Technical specs

Technical DataTable
Type Single arm fork equatorial mount
Encoder High Resolution Absolute Encoder
Capacity 38 kg single telescope setup, 50 kg double telescope setup.
Transmission system
All belts drive system based on four stages reducer.
All the movements are on ball bearings. No maintenance and no backlash system.
Pulleys made with special polymer fiberglass charged and high precision toothed belts.
Construction Material Anodized aluminium, worked out from single blocks with high precision 5 axis CNC machines
Slew Speed up to 10° / sec
GOTO system StarGo2 Pro
Counterweight bar Dovetail 3" clamp
Counterweight 2 kg counterweight
Scope plate Losmandy, 3" (75mm), dovetail, single knob with 2 tightening point
Warranty 2 years from the purchase date, extended to 5 years for the transmission system

-

Technical draw
