New STARGO2 PRO STAND ALONE - Special Offer for Pre Order

The StarGo2 Pro, is a based on a completely new approach for controlling the mounts. It is centered around the well-known Raspberry Pi 4 micro-computer. The philosophy behind the StarGO2 is providing the user with a control system independent from normal PC, remote controllable in all its functions using a smart device such as a smartphone or a tablet, not excluding, however, the traditional use of computers of all types and brands, wired or wireless connected to system. Being based on Raspberry PI, the StarGo2 is natively provided of all Linux based applications necessary to perform full astrophotography functions. The presence of INDI environment allows to control almost all the devices (cameras, filter wheels, rotator, etc. including even observatory domes) which are necessary to perform locally or remotely controlled astrophotography sessions. It allows also an extreme flexibility for those users that prefer to make use of the traditional computer client applications such as Cart du Ciel (Star Chart), TheSkyX, SkySafari, Stellarium and other planetarium programs, and SGP, Nina, CCD Ciel, and other astrophotography tools. This full compatibility is assured by the adoption of Alpaca communication protocol that allows the use of traditional ASCOM platform drivers for native INDI devices.

StarGo2 Pro Features

• Raspberry pi 4 based

• Compatible with all the Linux astronomical software (Kstar, Stellarium, Carte du Ciel etc.)

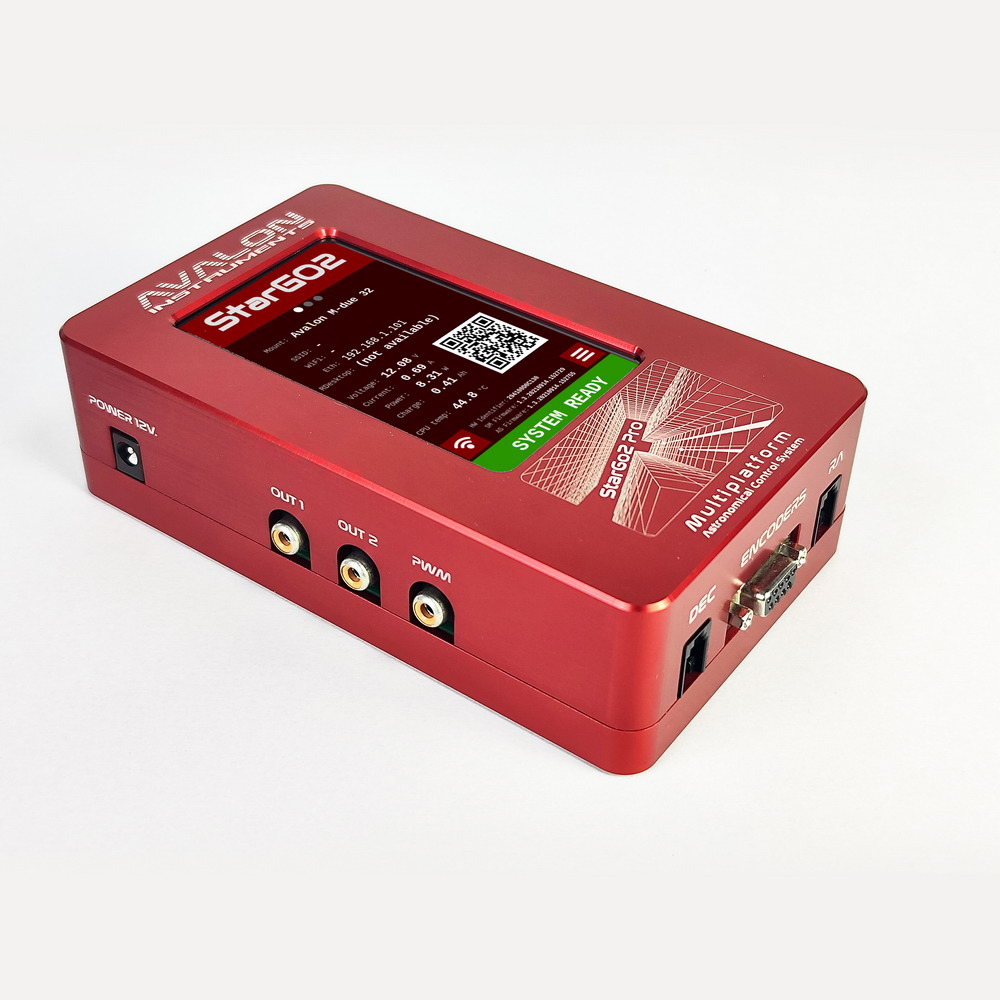

• 4” Touch Screen Display on StarGo2 Pro case embedded

• Connection mode:

  - HARDWARE CONNECTION

  - Mode 1: StarGo2 Pro as Hotspot

  - Mode 2: StarGo2 Pro connected to your network, via LAN or Wi-Fi

  - SOFTWARE CONNECTION

  - Desktop remote connection to the StarGo2 Pro Operative System - Raspberry Pi4 - for a full setup control - mount, CCD cameras, focuser etc.

  - Multiplatform Web App, for the system network connection and the mount function management

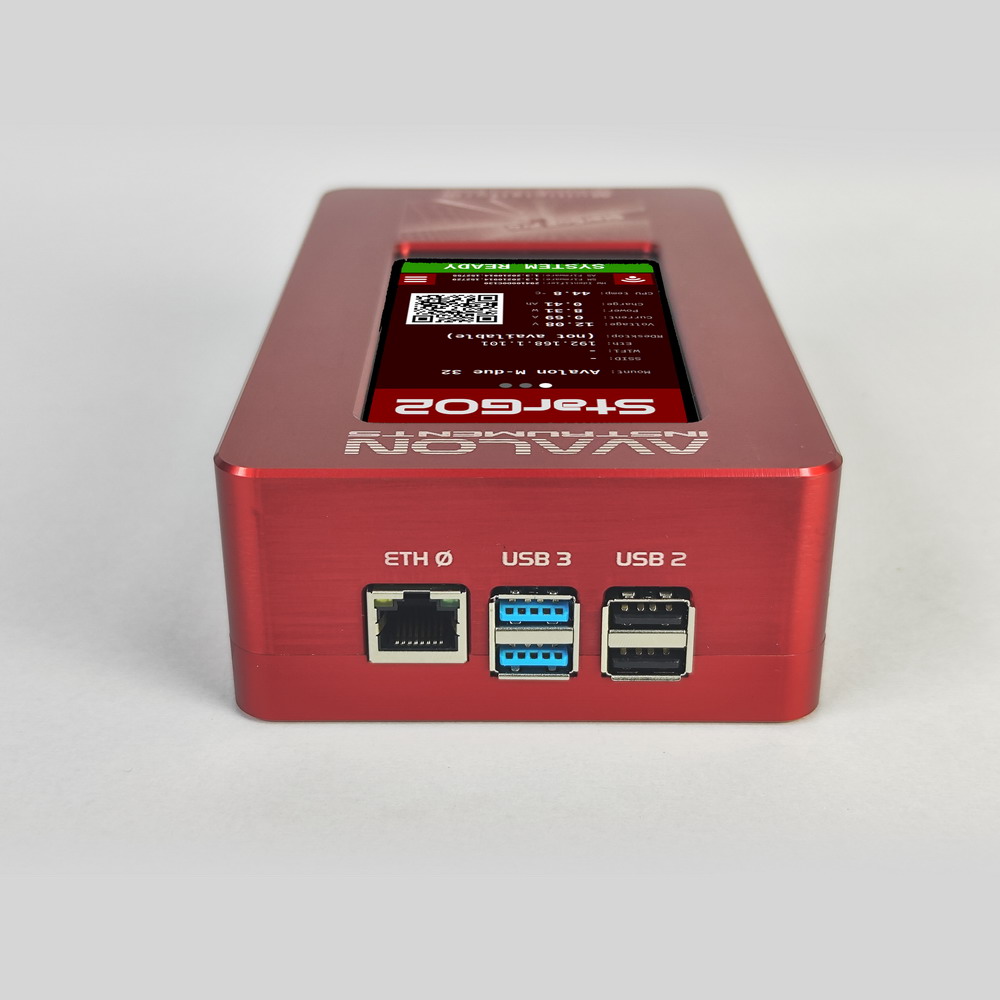

• Standard Raspberry pi4 Input/Output:

  - 1 audio port, 2 USB 2.0 ports.

  - 2 USB 3.0 ports, 1 Ethernet port

  - 2 x 12 volt power out ports

  - 1 x variable 6 – 12 volts power out port

  - 1 x Keypad

  - Aux 1 RJ port with ASCOM and INDI driver ready to be used

• SkySafari direct connection

• Driver:
  - INDI (Linux, Mac O.S.)

  - ASCOM Alpaca (Windowd O.S.)

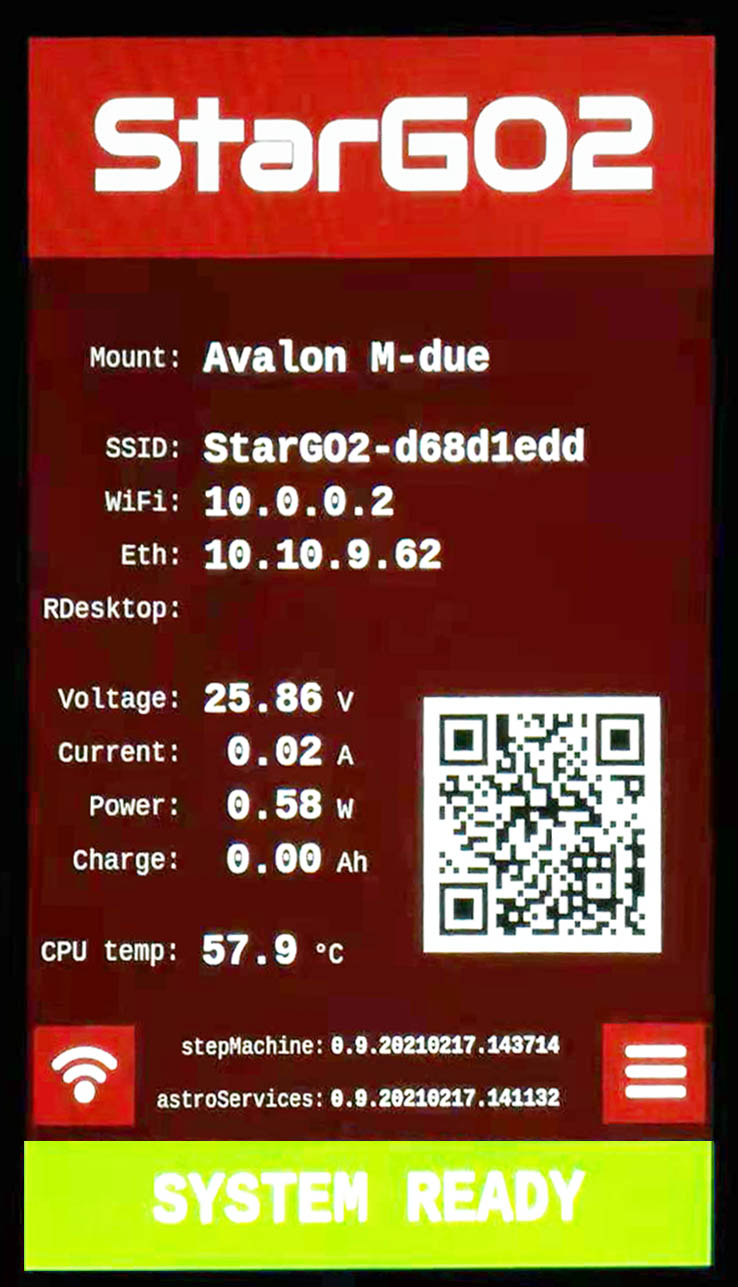

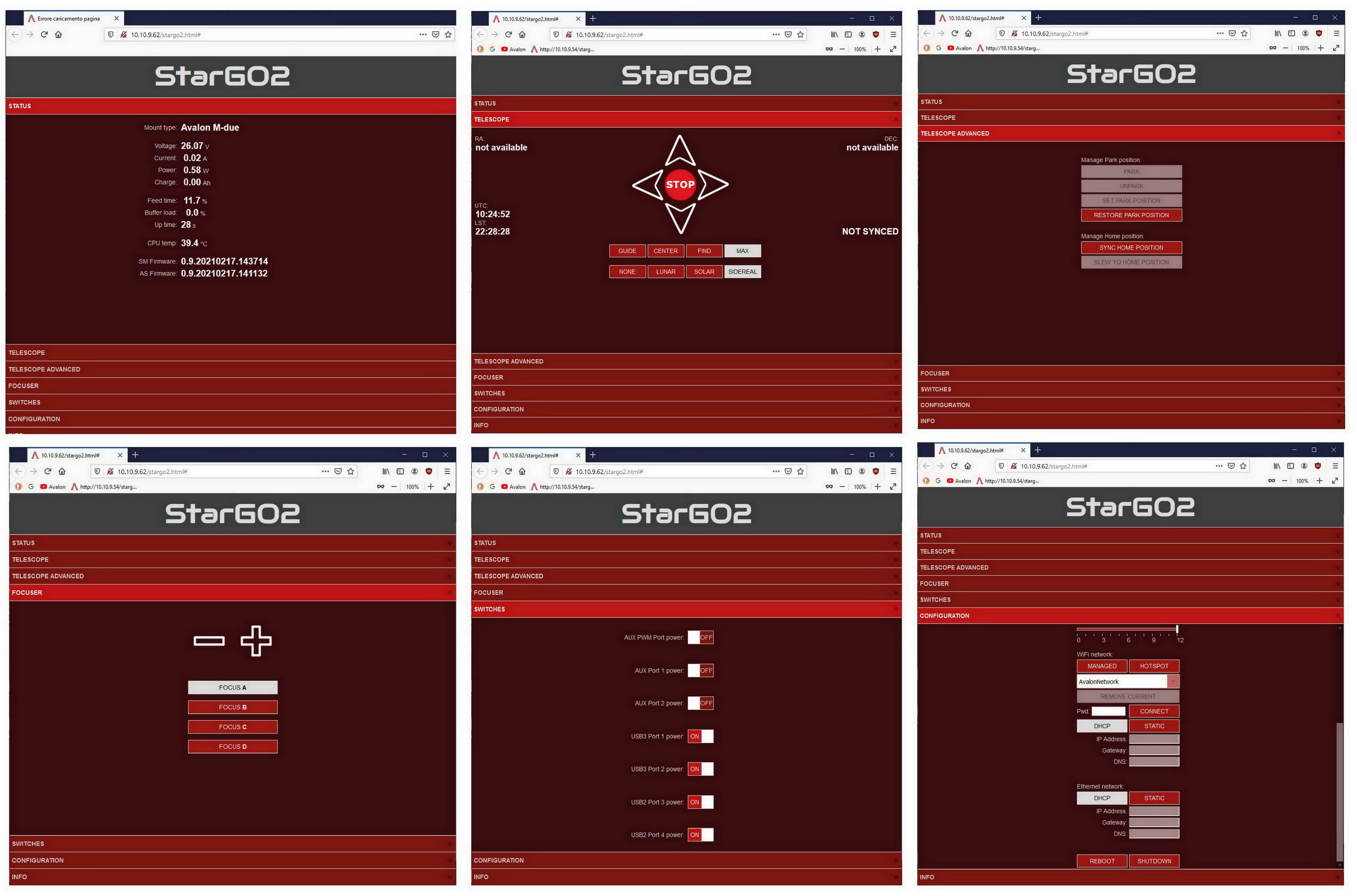

StarGo2 Pro LCD Touchscreen Web App Screenshot.
Click on the image below to watch more StarGo2 Pro menu screenshots.

Finally a real All in one astrophotografic setup management system for:

Mount - CCD cameras - Focuser

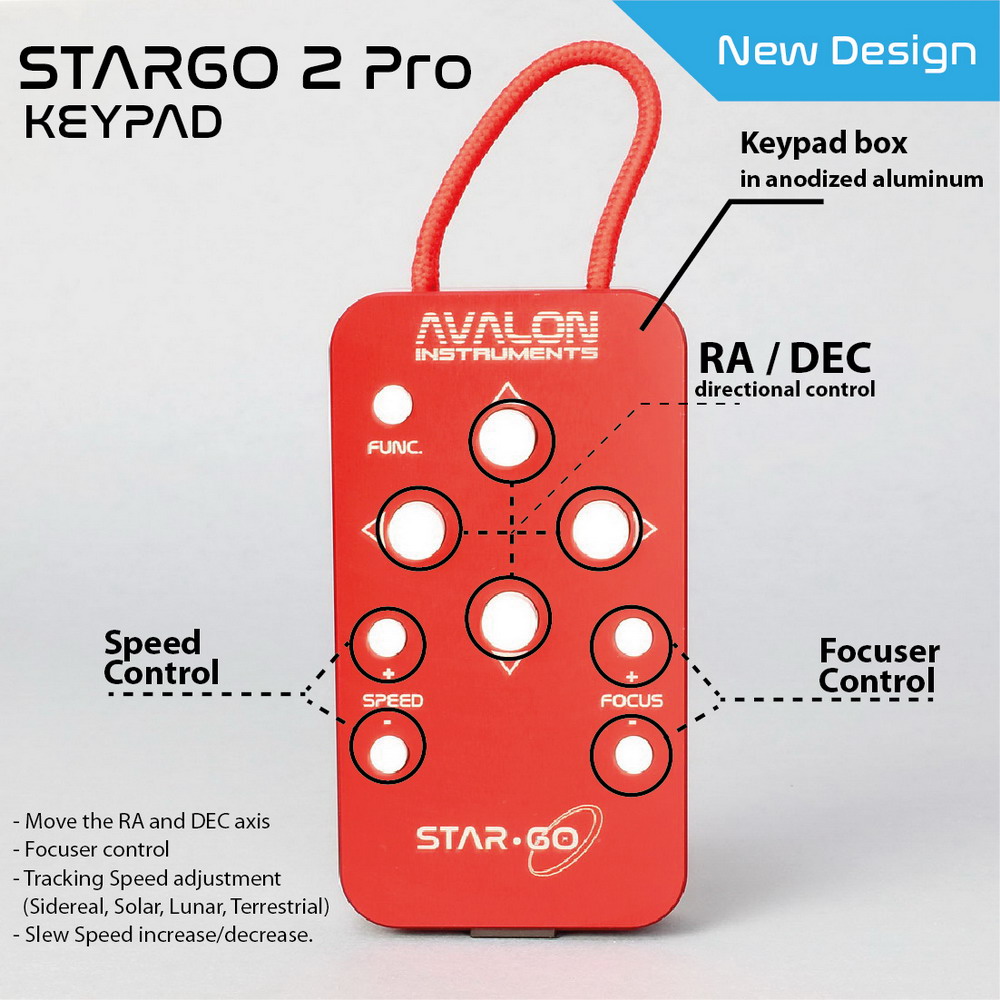

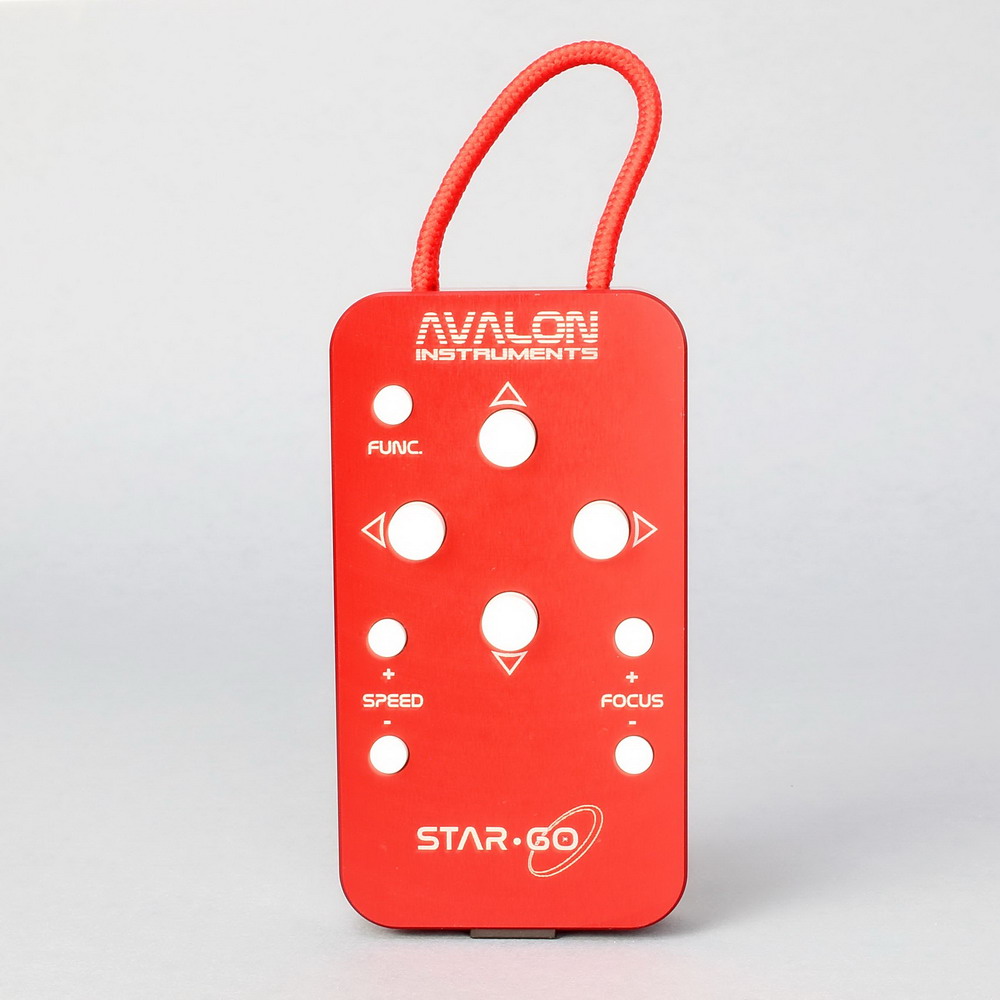

StarGo2 Pro Keypad New Design



Technical data

Technical Data
General	Multiplatform Astronomical Control System
System Speeds	Guide Center Find Max
Tracking Speeds	Terrestrial Lunar Solar Sideral
Autoguide Speeds	RA: From 0,05 to 0,95x with 0,05x increment step DEC: From 0,05 to 0,95x with 0,05x increments
Input/Output ports (Standard Raspberry pi4):	- 2 HDMI ports, 1 audio port, 2 USB 2.0 ports. - 2 USB 3.0 ports, 1 Ethernet port - 2 x 12 volt power out ports - 1 x variable 6 – 12 volts power out port - 1 x Keypad - Aux 1 RJ port with ASCOM and INDI driver ready to be used
Electrical Charateristics	Power Supply: 12 – 18 VCC stabilized. Current: 0,5 to 1,5 A
Control Operations	Goto, Sync, Park, Unpark
Driver	- INDI (Linux, Mac O.S.) - ASCOM Alpaca (Windowd O.S.)



User Manual



StarGo2 Pro User Manual 1.1.0
