Merlino Large

Dimensions: Length: 2436 mm, Width: 2200 mm, Height: 2683 mm
Price (VAT excl.)14.990,40 €
Italian VAT (22%) incl.18.288,29 €
Discount applied on the cart:

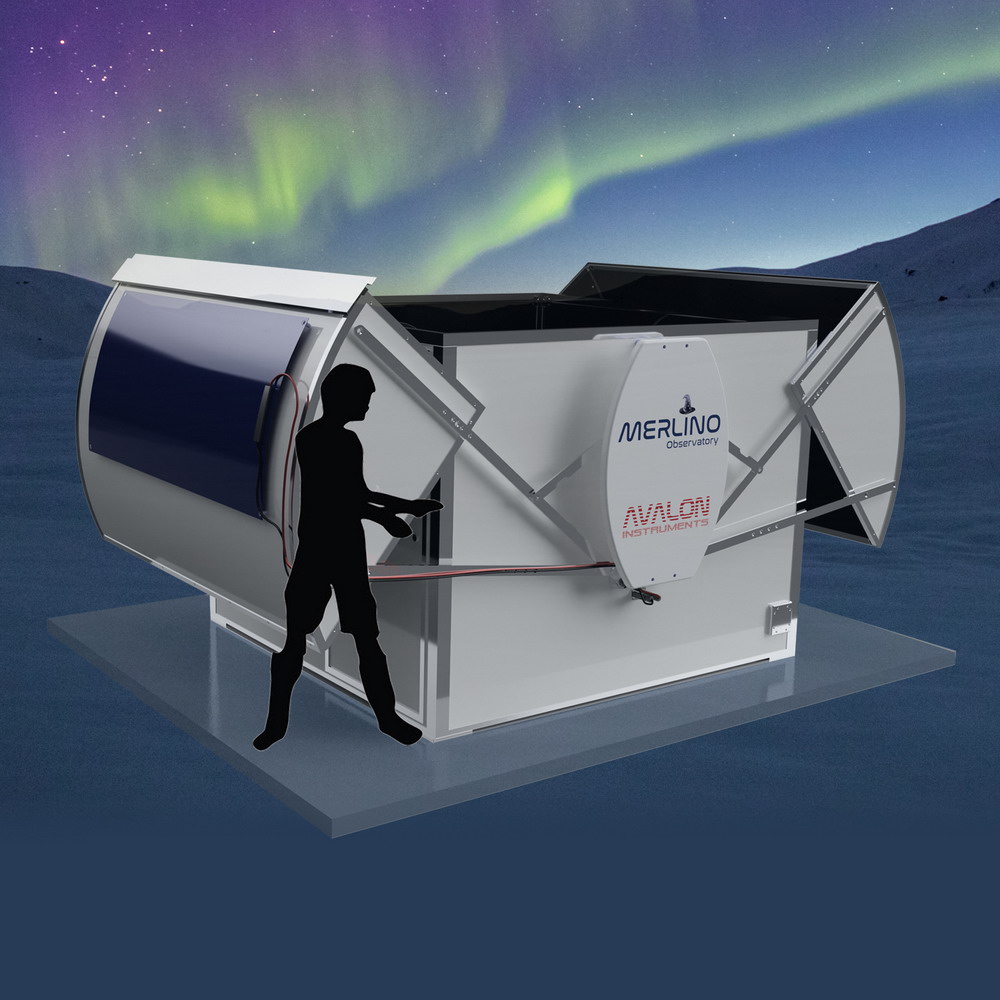

Merlino is the Personal Remote Observatory of Avalon-Instruments. It is designed to be totally "user friendly", and it is current state  of the art in  providing you with a vastly more comfortable and efficient use of your telescope, allowing the photographic using from remote darker sky locations, when time is limited or weather conditions are uncertain.

The large version Fully Equipped include the following items:

  • M-tre with Motorized Polar Alignment Kit
  • Pier/T-pod
  • Rasa 11"
  • OAG
  • Main CCD 1660 MMP MKIT1
  • CCD ZWO 174
  • Focuser

All made possible with a maximum of reliability & safety!
The main benefits of our design is its compactness and simplicity of use. Located inside is a PC, a router, and a dedicated electronic board that manages an entire series of sensors for complete control of your system, in terms of both functionality and safety. The system is controlled by a custom made software interface that allows the Merlino to be used in a mode very similar to a typical mobile setup. In fact, many commonly known software applications are integrated into the system, further increasing easy of use.

User-Friendliness is our #1 goal for your Merlino!

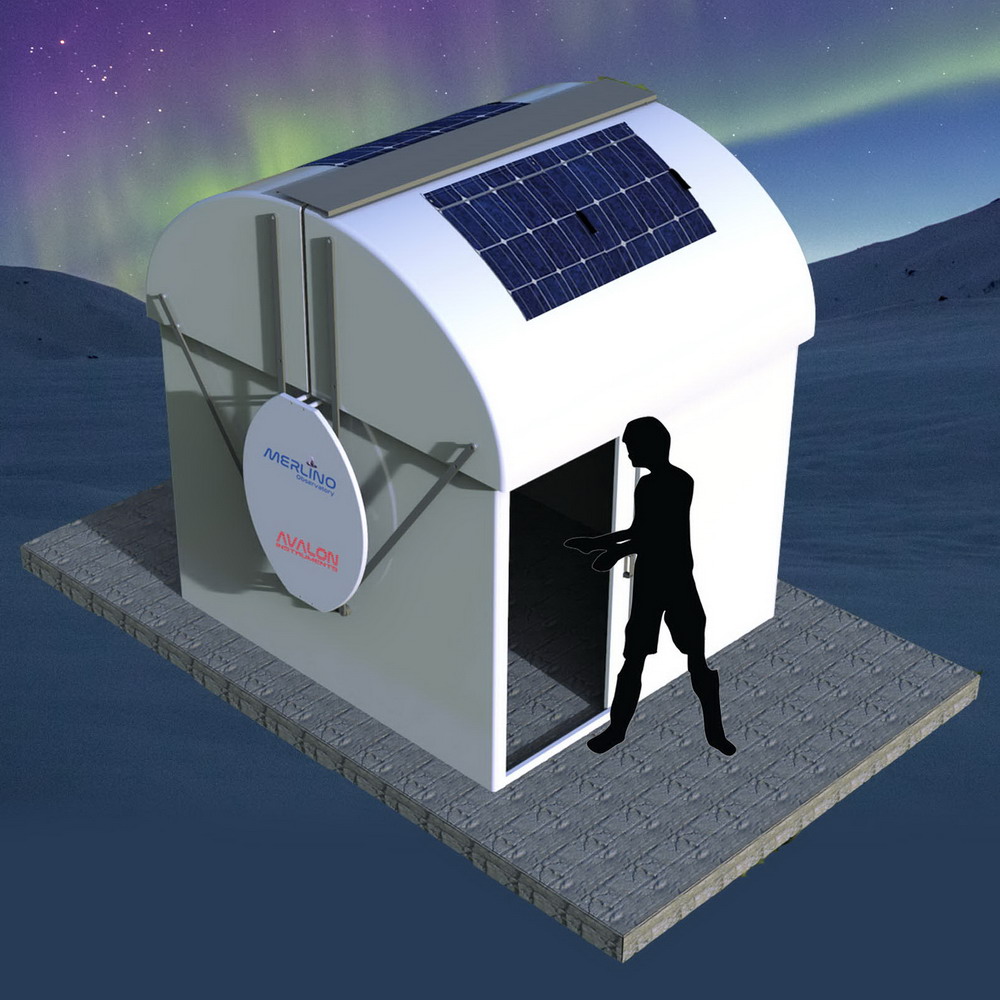

Thanks to its compact size, Merlino can be used in your terrace, your garden or nearly any available space. The internal 3G router connects your Merlino to a local area network (Intranet) or via the web (Internet). Of course, internet connection allows you to use your Merlino from a remote location. The Merlino is entirely powered by a 12 volt 18A battery and Solar Panels, which allows it to promptly close the session and automatically recover in case of blackout. This feature enables Merlino to be installed in locations where there are no local power supplies.

The Merlino project solves most of the problems related to the management of a remote Observatory thanks to its special characteristics.

Polar alignment is adjustable by the use of the Motorized Polar Alignment kit assembled on the M-tre mount.

The Personal Remote Observatory " Merlino " can be fully remote controlled.

The Merlino enables you to schedule photo sessions using macros created directly by the user, using the macro editor provided as standard equipments.

This allows you to automate both the beginning (startup) and closing (shutdown) of various operations. The Merlino is able to autonomously shut down the system in case of unexpected events or problems, thanks to the included rain sensor, thus ensuring the safety and security of your system.
 Monitored parameters
  • Temperature
  • Rain
  • Battery voltage
  • Internet connection
  • Total management control software
  • Quality of the autoguide star (during imaging)
Merlino comes standard with the following features:
  • Anodized aluminum structure with external cover, roof and panels, made of white color fiberglass.
  • Motorised open/close remote controlled mechanical shutter
  • PC with Windows software (in English language) for the Merlino functions control (no keyboard, no monitor)
  • Electronic I/O control board (diagram attached below)
  • WiFi Router with 3G internet sim device input predisposition.
  • Motorized webcam for internal inspection and visual sky (rain) monitoring
  • Rain detector.
  • Software management system for P.R.O. Merlino and M-Uno mount
  • Insulated, internally wired electrical system
  • Power supply with 12VDC /18A battery & battery charger
  • English Instruction manual in English
 Optional accessories
  • Low profile pier to support the M-Uno mount
  • Motorized system for Polar Alignment (drivers are already available on the E.board)
  • Automatic homing micro switch motor
  • Buffer batteries up to 120 Amperes according to specific needs.
  • Remote electric Focuser for Celestron optics HD 8 ", 25.9", 11" (direct StarGO control)
